Module 5: The OpenTelemetry Collector

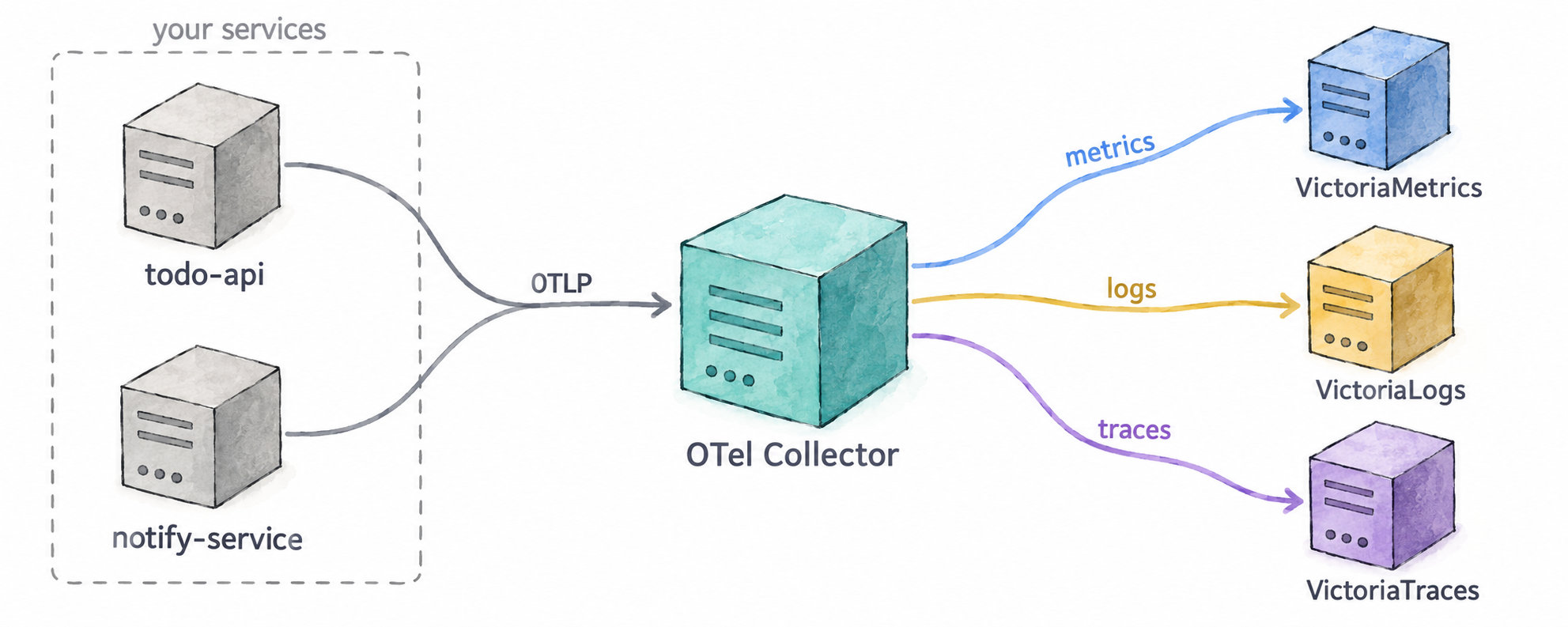

In Module 4 your application started sending all three signals to a single address, otel-collector:4318, and they ended up in three different backends. This module is about what sits at that address: what the OpenTelemetry Collector is, what it can do, and what the one in this workshop is already doing to your telemetry. 📦

Learning Objectives

By the end of this module, you will:

• Know what the OpenTelemetry Collector is and where it sits between your application and your backends
• Know its building blocks — receivers, processors, exporters, connectors and pipelines
• Know the kinds of problems it solves
• Be able to say what this workshop’s Collector does to your metrics, logs and traces

5.1 — What the Collector is

The OpenTelemetry Collector is a standalone program, part of the OpenTelemetry project, that receives telemetry, processes it and sends it on. It is vendor-neutral: it speaks OTLP, the OpenTelemetry protocol, and dozens of other formats, in and out.

Your application doesn’t need it — an SDK can export straight to a backend. But putting a Collector in the middle changes who has to know what:

• Your application knows one endpoint. It sends everything over OTLP to the Collector and is done. It doesn’t know which backends exist, where they are, or what each one expects.
• The Collector knows everything else. Which backend gets which signal, at what URL, with which headers, and what to change on the way. Change a backend, add a second one, or start dropping something noisy, and no application has to be redeployed.

5.2 — The building blocks

A Collector is configured from a handful of component types:

Components are wired together into pipelines, one per signal. A pipeline says: take the metrics (or logs, or traces) from these receivers, run them through these processors in this order, and hand them to these exporters. A component that is declared but not used in any pipeline does nothing.

5.3 — What it can do

Most of what makes a Collector worth running falls into a few groups:

• Routing. Send each signal to the backend that stores it, or the same signal to two backends at once — useful during a migration.
• Enrichment. Add attributes the application doesn’t know about: the environment, the cluster, the region.
• Normalisation. Make telemetry from different SDKs, languages and versions look the same before it is stored, so queries and dashboards only deal with one shape.
• Reduction. Drop what you don’t need — health-check spans, debug logs, an attribute nobody queries — before you pay to store it. Sample traces, keeping the interesting ones.
• Protection. Remove sensitive data, such as emails or tokens, in one place instead of in every application.
• Derivation. Produce new telemetry from existing telemetry, such as request rate, errors and duration computed from spans.
• Reliability. Batch telemetry for efficiency, retry when a backend is down, queue while it recovers, and refuse work rather than run out of memory.
• Translation. Accept telemetry in one format and send it in another — scrape Prometheus endpoints, read log files, receive Jaeger or Zipkin.

It is commonly deployed in two ways, often both at once: as an agent next to each application, on the same host or in the same pod, and as a gateway, a central pool that agents and applications send to.

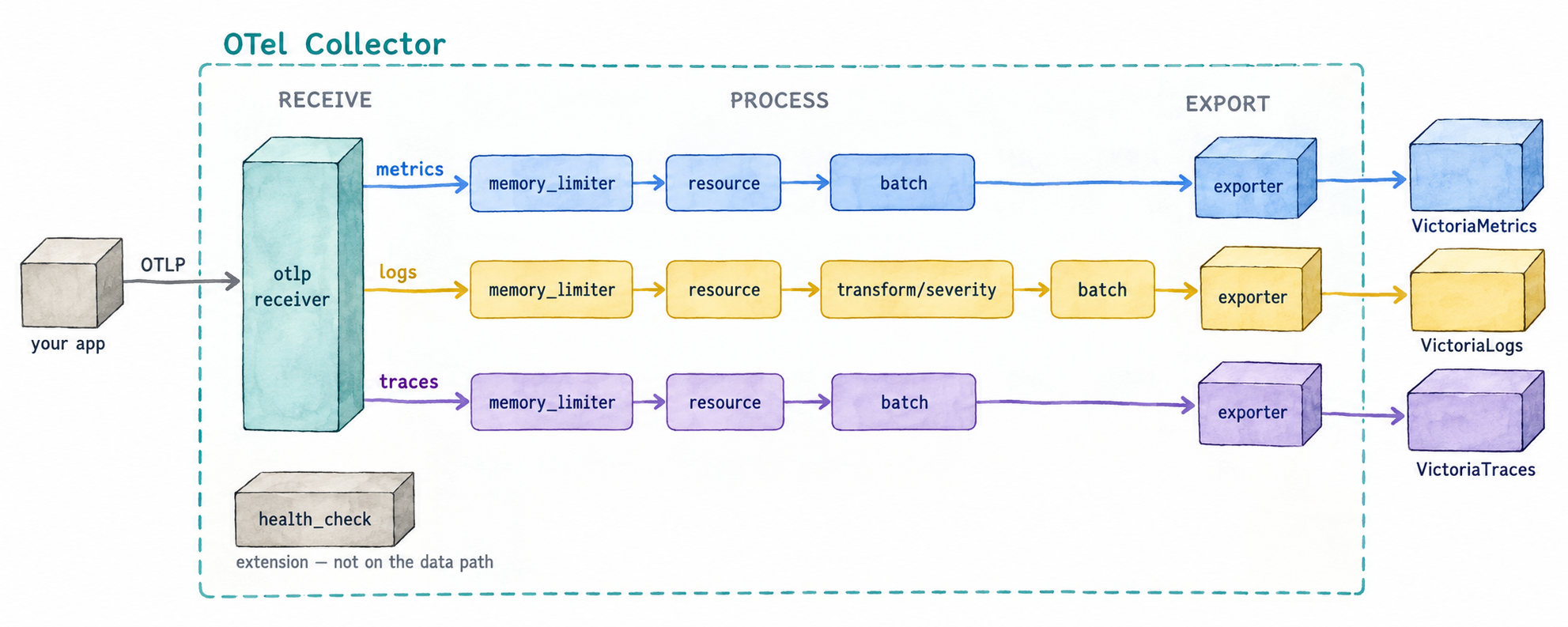

5.4 — What this workshop’s Collector does

The Collector you have been sending to since Module 4 is configured in collector/config.yaml. You don’t need to read or change it; this is what it does.

Receivers

• OTLP, on port 4318 (HTTP) and 4317 (gRPC). This is where todo-api and notify-service send their metrics, logs and traces.
• Its own metrics. The Collector reports on itself — what it received, what it sent, how full its queues are — and scrapes those numbers into its own metrics pipeline, so they land in VictoriaMetrics like any other metric. The Telemetry pipeline row of the Auto-Instrumentation dashboard in Grafana is built from them.

Processors, applied in this order:

• memory_limiter — makes the Collector refuse data when it is close to its memory limit, instead of crashing and losing everything.
• resource — adds deployment.environment=workshop to all telemetry, so every metric, log and span says which environment it came from, even if an application forgot to set it.
• transform/severity — logs only. The JavaScript SDK reports levels in lower case (info) and the Python SDK in upper case (INFO). This processor converts them all to upper case, so a query for ERROR finds errors from both languages.
• batch — groups telemetry into larger requests before sending it, which is far cheaper for both the Collector and the backends.

Exporters, one per backend:

• VictoriaMetrics receives the metrics.
• VictoriaLogs receives the logs, with a VL-Stream-Fields header that tells VictoriaLogs how to group them into streams: by service.name and deployment.environment.
• VictoriaTraces receives the traces.

Extensions

• health_check, on port 13133. It answers whether the Collector is up; doctor.sh uses it.

And the pipelines that connect them:
